Overview
PLD (Pulsed Laser Deposition) is a physical deposition method that utilizes a high energy
focused laser. Conceptually and experimentally. PLD is extremely simple. It consists of a
target holder and a substrate holder housed in a vacuum chamber. A set of optical
components focus and raster a high-power laser (the external source) into a
concentrated beam over the target surface which vaporizes target materials to
ultimately deposite thin film.
Advantages
≻ Allows for the use of various targets and for the in-situ deposition of multi-layers
≻ Consists of simple hardware
≻ Simple system maintenance
≻ Various aspect of beam-target-substrate positioning
≻ Temperature uniformity of substrate
≻ Pyrometer Port
≻ Laser strength measurement port
≻ Ellipsometry port
Overview
PLD (Pulsed Laser Deposition) is a physical deposition method that utilizes a high energy
focused laser. Conceptually and experimentally. PLD is extremely simple. It consists of a
target holder and a substrate holder housed in a vacuum chamber. A set of optical
components focus and raster a high-power laser (the external source) into a
concentrated beam over the target surface which vaporizes target materials to
ultimately deposite thin film.
Advantages
≻ Allows for the use of various targets and for the in-situ deposition of multi-layers
≻ Consists of simple hardware
≻ Simple system maintenance
≻ Various aspect of beam-target-substrate positioning
≻ Temperature uniformity of substrate
≻ Pyrometer Port
≻ Laser strength measurement port
≻ Ellipsometry port
-
Specifications
제품 Specifications
Specifications
ITEM
SPECIFICATIONS
UHV chamber Ultimate Pressure
up to 5.0E-9Torr
Two Chamber System
Process chamber & Loadlock chamber
Uniformity Zone of Substrate Heating
Ø15 mm
Substrate Temperature
850°C ± 5°C in oxygen
Operating Pressure
0.01mTor ~ 10 Torr
Target Carousel
one inch (25.4mm) diameter for four targets
Normal Angle of Incidence
Laser beam on target : 45° with respect to target normal
Loading type
Easy to load or unload sample and target by magnetic transfer
Option1
RHEED (Reflection High-Energy Electron Diffraction)
Option2
CCD Camera for Oscillation of RHEED
Option3
Pyrometer for measuring substrate temperature
Specifications
ITEM
SPECIFICATIONS
UHV chamber Ultimate Pressure
up to 5.0E-9Torr
Two Chamber System
Process chamber & Loadlock chamber
Uniformity Zone of Substrate Heating
Ø15 mm
Substrate Temperature
850°C ± 5°C in oxygen
Operating Pressure
0.01mTor ~ 10 Torr
Target Carousel
one inch (25.4mm) diameter for four targets
Normal Angle of Incidence
Laser beam on target : 45° with respect to target normal
Loading type
Easy to load or unload sample and target by magnetic transfer
Option1
RHEED (Reflection High-Energy Electron Diffraction)
Option2
CCD Camera for Oscillation of RHEED
Option3
Pyrometer for measuring substrate temperature
-
Options
-
Control
제품 Control
System Control
Pumping

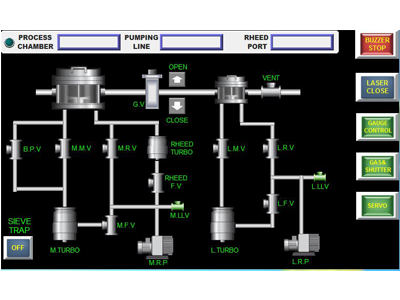

The figure shows the pumping screen. Pumping
screens have valves and pumps. The pump and valve are easily operated with one touch
Servo

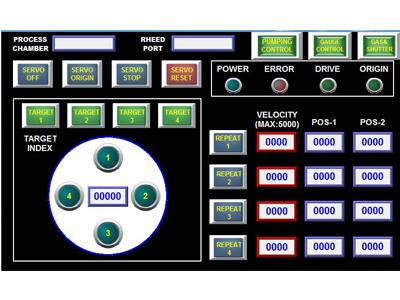

The picture shows the servo screen. When you press the target button on this screen, target is rotated and you can see the target you selected. It also includes a target trigger function.
Shutter

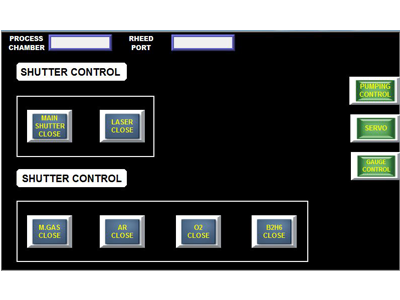

This screen shows the shutter screen. There are buttons on the screen to operate the substrate shutter, the gas valve, and the sputter gun shutter.
Gauge Control
This screen shows the gauge control screen. There are buttons
on the screen
System Control
Pumping
The figure shows the pumping screen. Pumping
screens have valves and pumps. The pump and valve are easily operated with one touch
Servo
The picture shows the servo screen. When you press the target button on this screen, target is rotated and you can see the target you selected. It also includes a target trigger function.
Shutter
This screen shows the shutter screen. There are buttons on the screen to operate the substrate shutter, the gas valve, and the sputter gun shutter.
Gauge Control
This screen shows the gauge control screen. There are buttons
on the screen
-
