Overview
Sputter deposition is a technique used to deposit thin films of a material onto a surface
(substrate). Atoms and ions of a given material are made to collide. The resulting
momentum exchange disperses incident ions which further perpetuate activity setting
off collision cascades in the target. This activity drives the sputtering process. When
such cascades recoil and reach the target surface with an energy above the surface
binding energy, and atom can be ejected. If the target is thin on an atomic scale the
collision cascade can reach the back side of the target and atoms can escape the
surface binding energy in transmission. The average number of atoms ejected from the
target per incident ion is called the “sputter yield” and depends on the ion incident
angle, the energy of the ion, the masses of the ion and target atoms, and the surface
binding energy of atoms in the target.
Features
≻ Excellent Thickness Uniformity
The KVS Series RF&DC Sputtering System provide excellent thickness uniformity of resultant films
even for substrates that have the same diameter as the sputtering cathode assembly
≻ Full Auto control
These systems provide the ‘auto button’ to user for convenience of user.
Fully automated vacuum process control system.
≻ Always maintain high vacuum degree in process
These systems have a process chamber and a loadlock chamber.
Loadlock chamber is used for sample loading. So process chamber is always maintained high vacuum state.
Overview
Sputter deposition is a technique used to deposit thin films of a material onto a surface
(substrate). Atoms and ions of a given material are made to collide. The resulting
momentum exchange disperses incident ions which further perpetuate activity setting
off collision cascades in the target. This activity drives the sputtering process. When
such cascades recoil and reach the target surface with an energy above the surface
binding energy, and atom can be ejected. If the target is thin on an atomic scale the
collision cascade can reach the back side of the target and atoms can escape the
surface binding energy in transmission. The average number of atoms ejected from the
target per incident ion is called the “sputter yield” and depends on the ion incident
angle, the energy of the ion, the masses of the ion and target atoms, and the surface
binding energy of atoms in the target.
Features
≻ Excellent Thickness Uniformity
The KVS Series RF&DC Sputtering System provide excellent thickness uniformity of resultant films
even for substrates that have the same diameter as the sputtering cathode assembly
≻ Full Auto control
These systems provide the ‘auto button’ to user for convenience of user.
Fully automated vacuum process control system.
≻ Always maintain high vacuum degree in process
These systems have a process chamber and a loadlock chamber.
Loadlock chamber is used for sample loading. So process chamber is always maintained high vacuum state.
-
Specifications
제품 Specifications
Specifications
ITEM
SPECIFICATIONS
Process Chamber
Stainless steel
Vacuum Pumping Station
Turbo molecular pump
Loadlock Chamber
Stainless steel
Substrate Heating Unit
SiC / 2”, 3”, 4”, 6”, 8”
Sample Loading/Unloading Unit
Full auto / Semi-auto
Pressure Control Unit
Auto
Vacuum Gauge Controller
ATM ~ 1.0E-10Torr
Gas Supply Unit
MFC (Ar, O2, N2, H2, etc..)
Power Supply Unit
RF / DC / Pulsed DC
Target Size
2”, 3”, 4”, 6”
Film Thickness Uniformity
Less than ±5%
Ultimate Pressure
Less than 5.0E-7Torr
Specifications
ITEM
SPECIFICATIONS
Process Chamber
Stainless steel
Vacuum Pumping Station
Turbo molecular pump
Loadlock Chamber
Stainless steel
Substrate Heating Unit
SiC / 2”, 3”, 4”, 6”, 8”
Sample Loading/Unloading Unit
Full auto / Semi-auto
Pressure Control Unit
Auto
Vacuum Gauge Controller
ATM ~ 1.0E-10Torr
Gas Supply Unit
MFC (Ar, O2, N2, H2, etc..)
Power Supply Unit
RF / DC / Pulsed DC
Target Size
2”, 3”, 4”, 6”
Film Thickness Uniformity
Less than ±5%
Ultimate Pressure
Less than 5.0E-7Torr
-
Options
-
Control
제품 Control
System Control
Vacuum

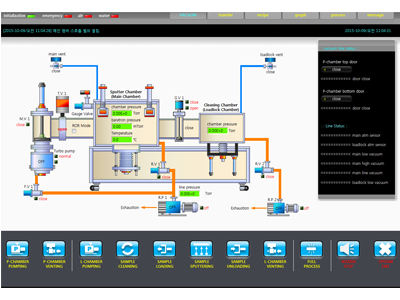

This screen shows the pumping screen. This screen
consists of each valve, pump action button, automatic
button. The biggest difference from Semi Auto is the
automatic button, so if you proceed with these
buttons in sequence, one sample will be completed.
Process

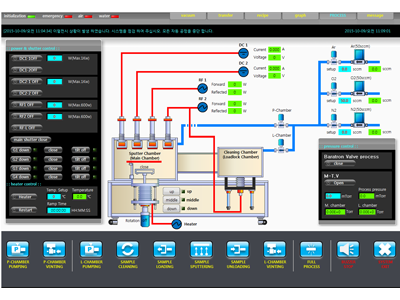

The figure shows the process screen. This screen
shows the buttons that can control the gas flow rate,
valve,power etc. required for the process.
Recipe

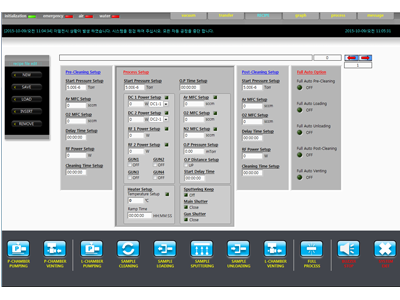

The figure shows the recipe screen. This screen
contains boxes for entering the process conditions
required for deposition. Input all the boxes and press
the Process button to automatically deposit according
to the input process conditions.
Transfer

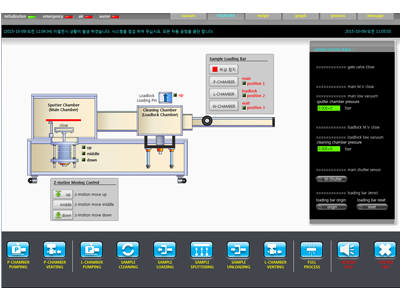

The figure shows the Transfer screen. In this
screen, there are buttons that allow you to manipulate
the part you will use to move samples from the load
lock chamber to the process chamber, such as the
loading arm, z-motion.
Graph
The figure shows the graph screen. This
screen shows vacuum degree, power amount,
deposition rate, thickness and so on. You can record
that data and make it into a file and compare it with
the previous data.
Message

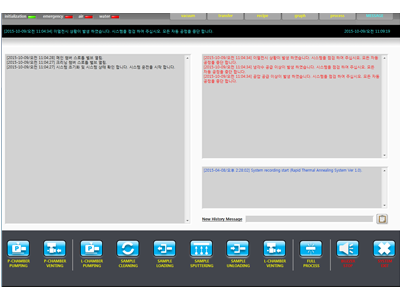

The picture is a graph screen. The picture consists of
status message notification messages
System Control
Vacuum
This screen shows the pumping screen. This screen
consists of each valve, pump action button, automatic
button. The biggest difference from Semi Auto is the
automatic button, so if you proceed with these
buttons in sequence, one sample will be completed.
Process
The figure shows the process screen. This screen
shows the buttons that can control the gas flow rate,
valve,power etc. required for the process.
Recipe
The figure shows the recipe screen. This screen
contains boxes for entering the process conditions
required for deposition. Input all the boxes and press
the Process button to automatically deposit according
to the input process conditions.
Transfer
The figure shows the Transfer screen. In this
screen, there are buttons that allow you to manipulate
the part you will use to move samples from the load
lock chamber to the process chamber, such as the
loading arm, z-motion.
Graph
The figure shows the graph screen. This
screen shows vacuum degree, power amount,
deposition rate, thickness and so on. You can record
that data and make it into a file and compare it with
the previous data.
Message
The picture is a graph screen. The picture consists of
status message notification messages
-
